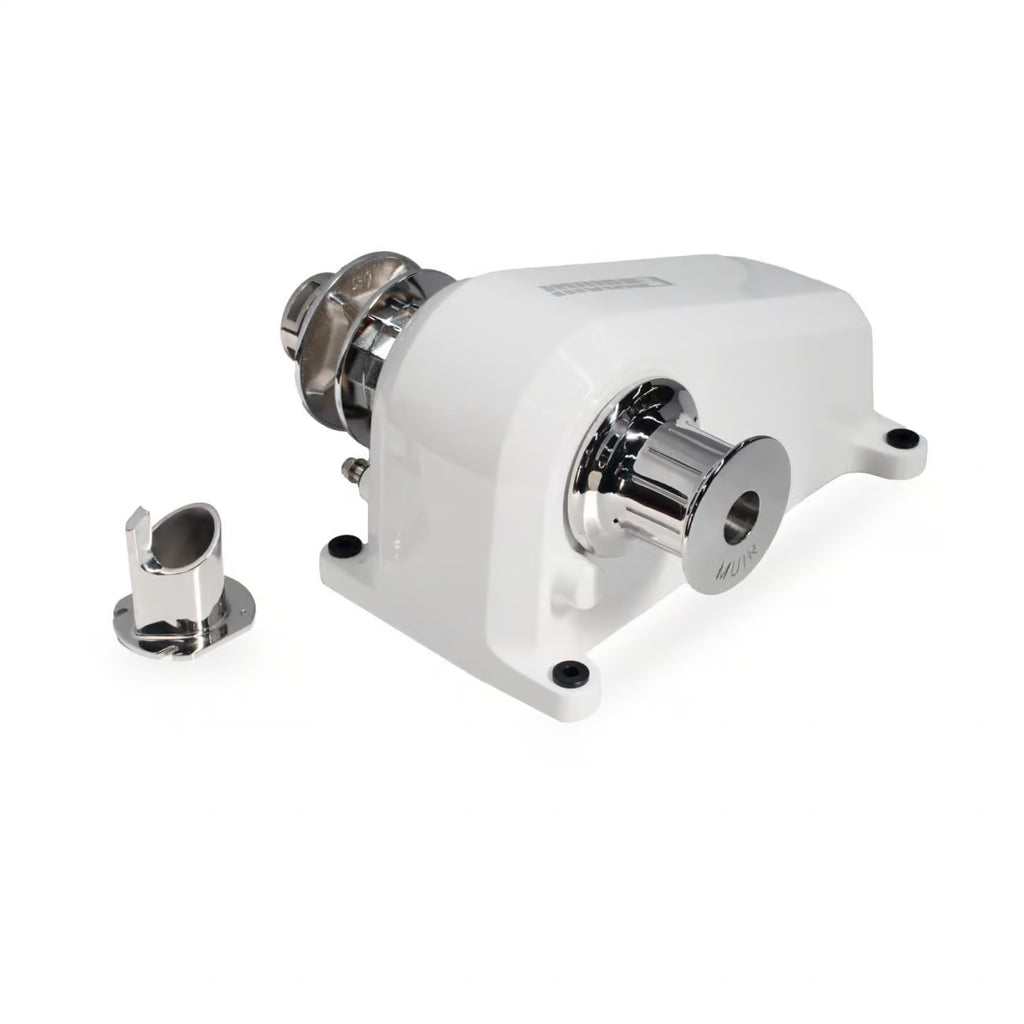

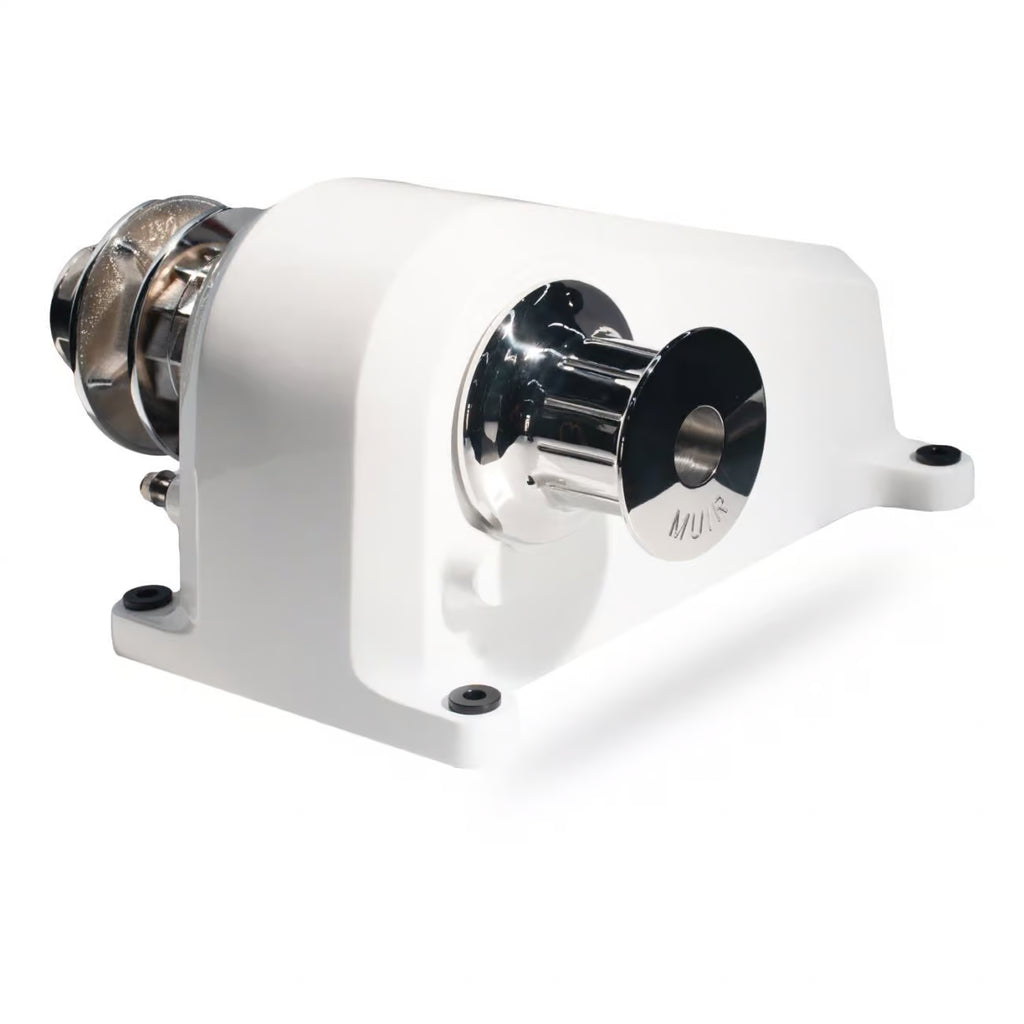

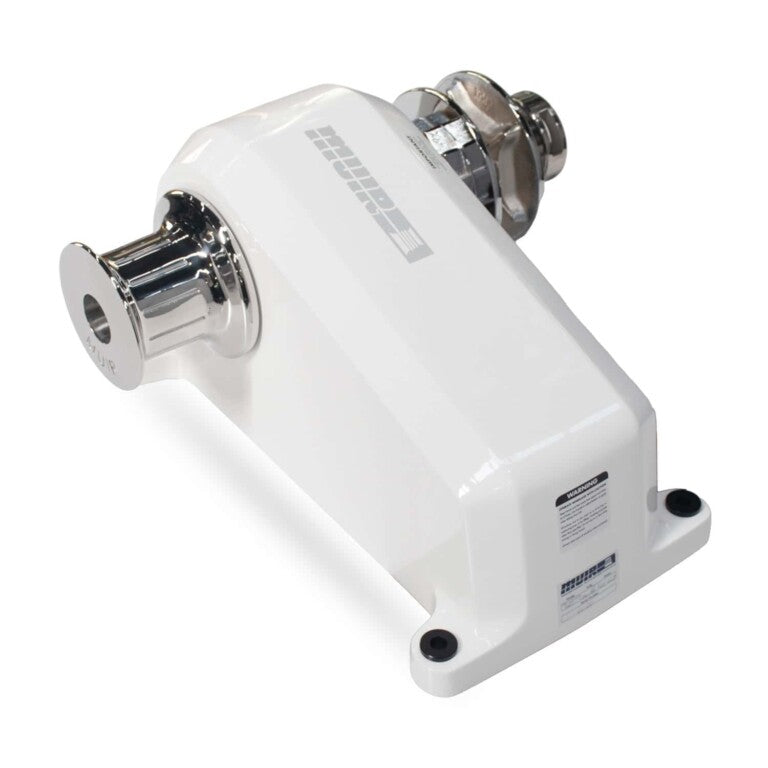

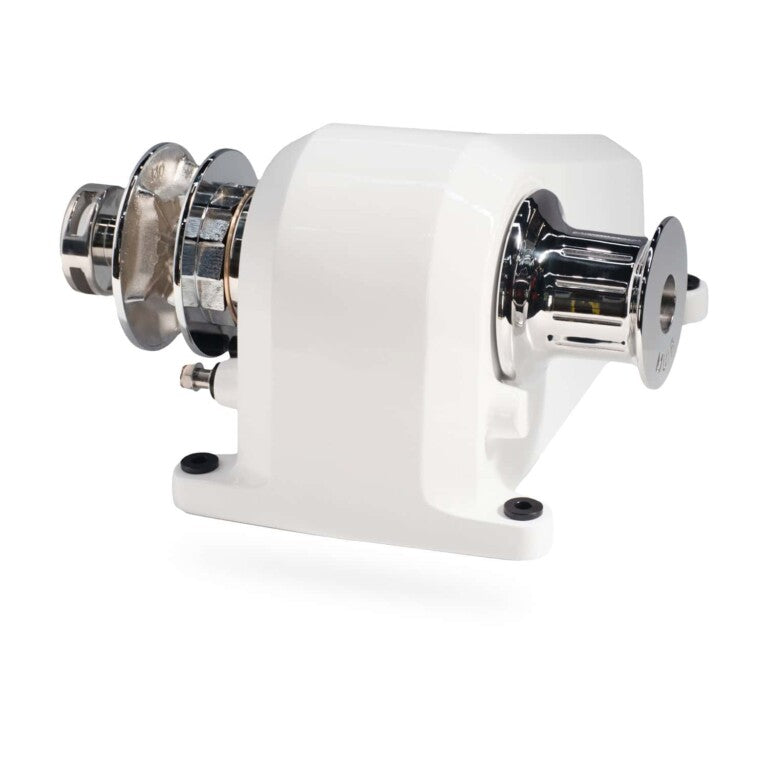

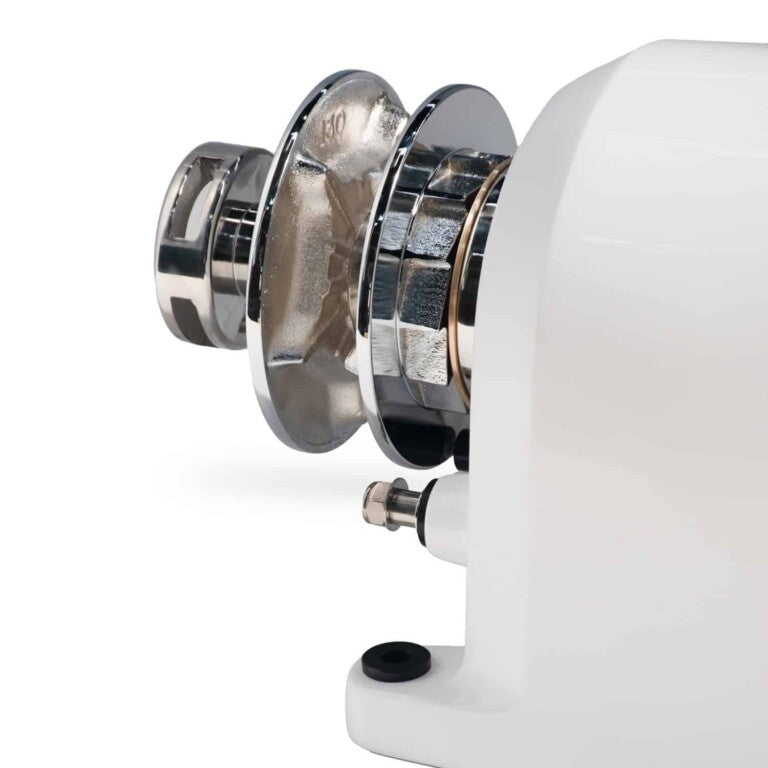

Marine Horizontal Windlass - Muir Compact HR4200
$10,926.21
Features
- Durable marine-grade white gloss composite housing
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Chain pipe & peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specifications Name Specifications Recommended Vessel Length 18-24m Power Supply Options DC 24V, DC 48V Recommended Muir Circuit Breaker 150A (24V)
Motor (Watts) 2200Watts Amps Workload 110A (12V) Hydraulic Pressure 12MPa Hydraulic Flow 28L/min Max Load 2100Kg Workload 700Kg Max Line Speed 17m/min Compatible Chain Sizes 8 mm (5/16“), 10 mm (3/8”), 13 mm (1/2”), 16 mm (5/8”) Auto Anchor Compatible Yes Net Weight DC 64Kg Net Weight Hydraulic 63Kg Manual Operation MORS (std)
