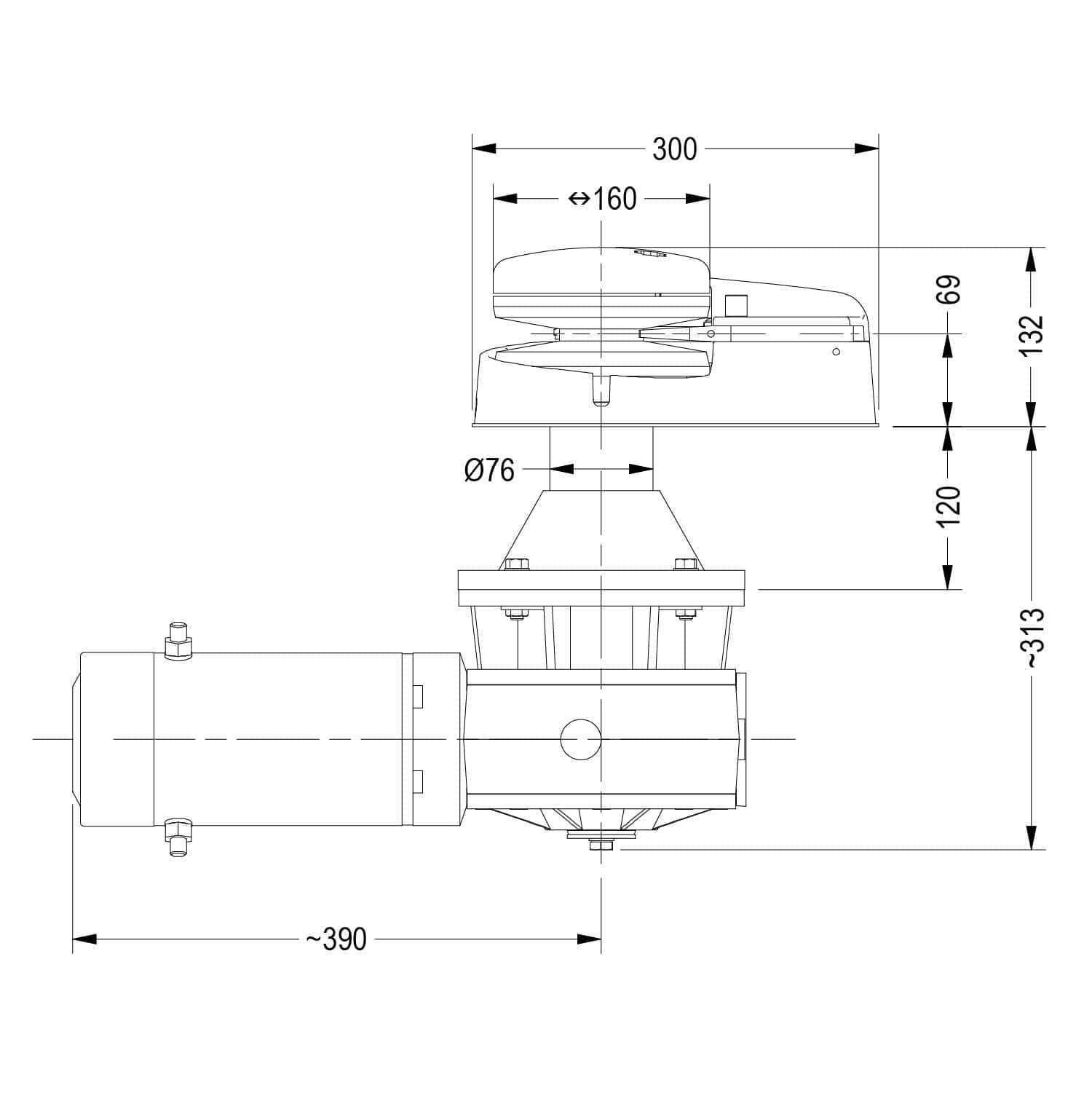

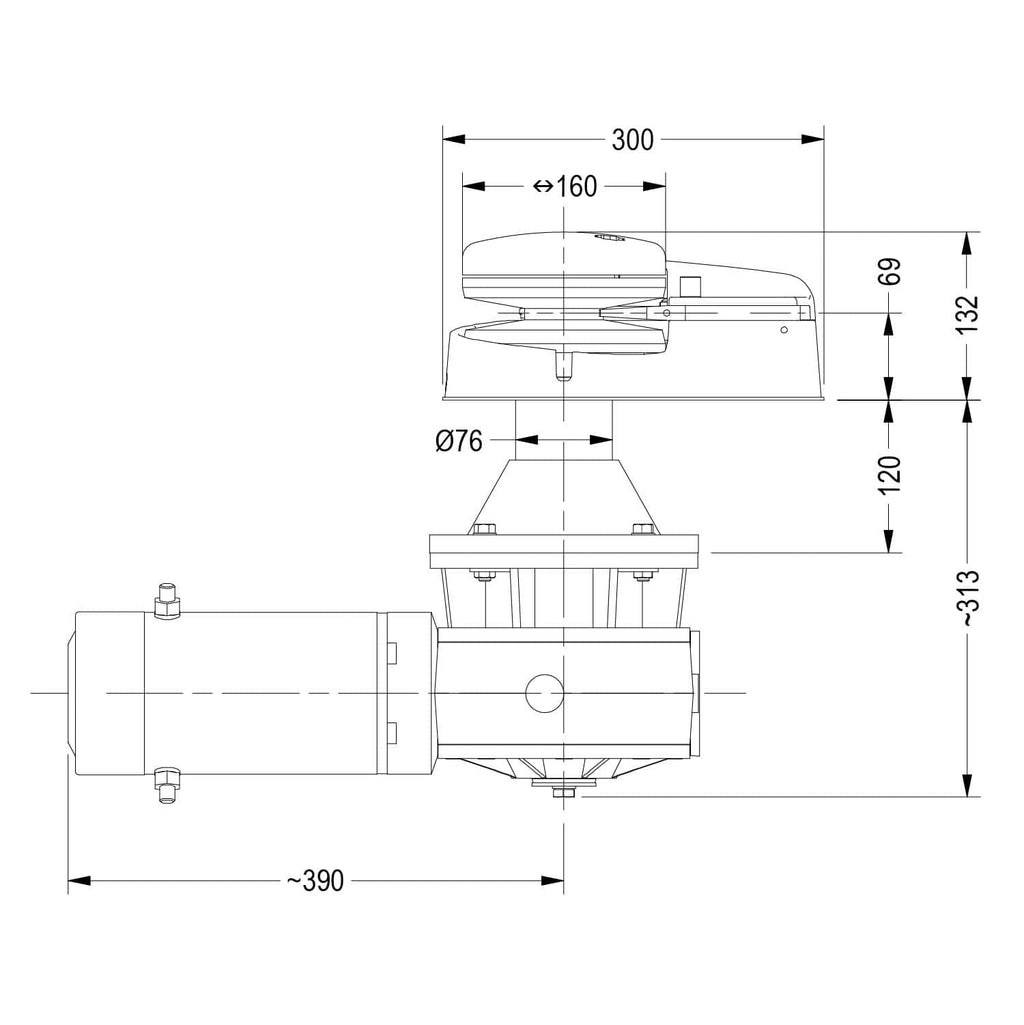

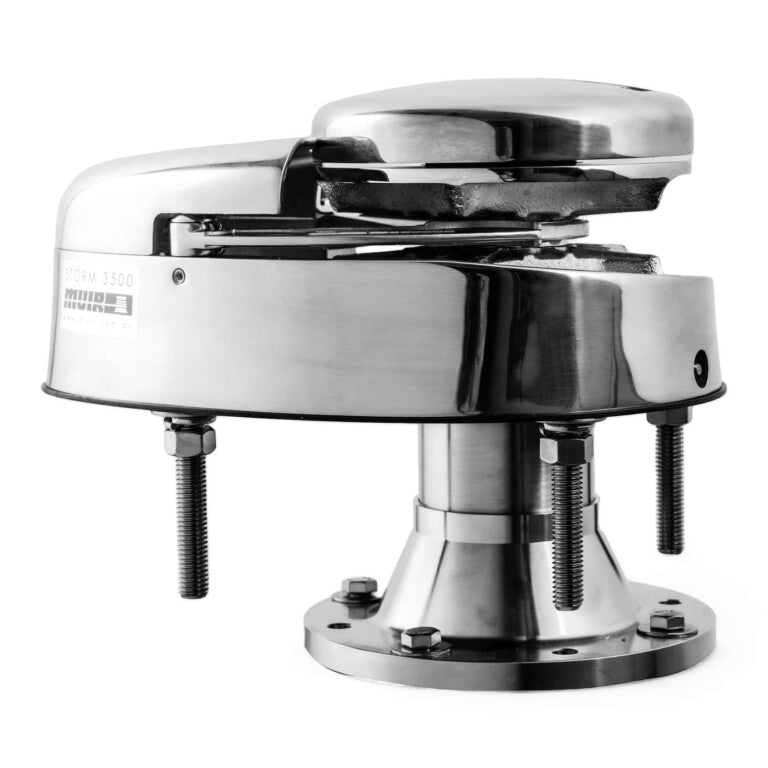

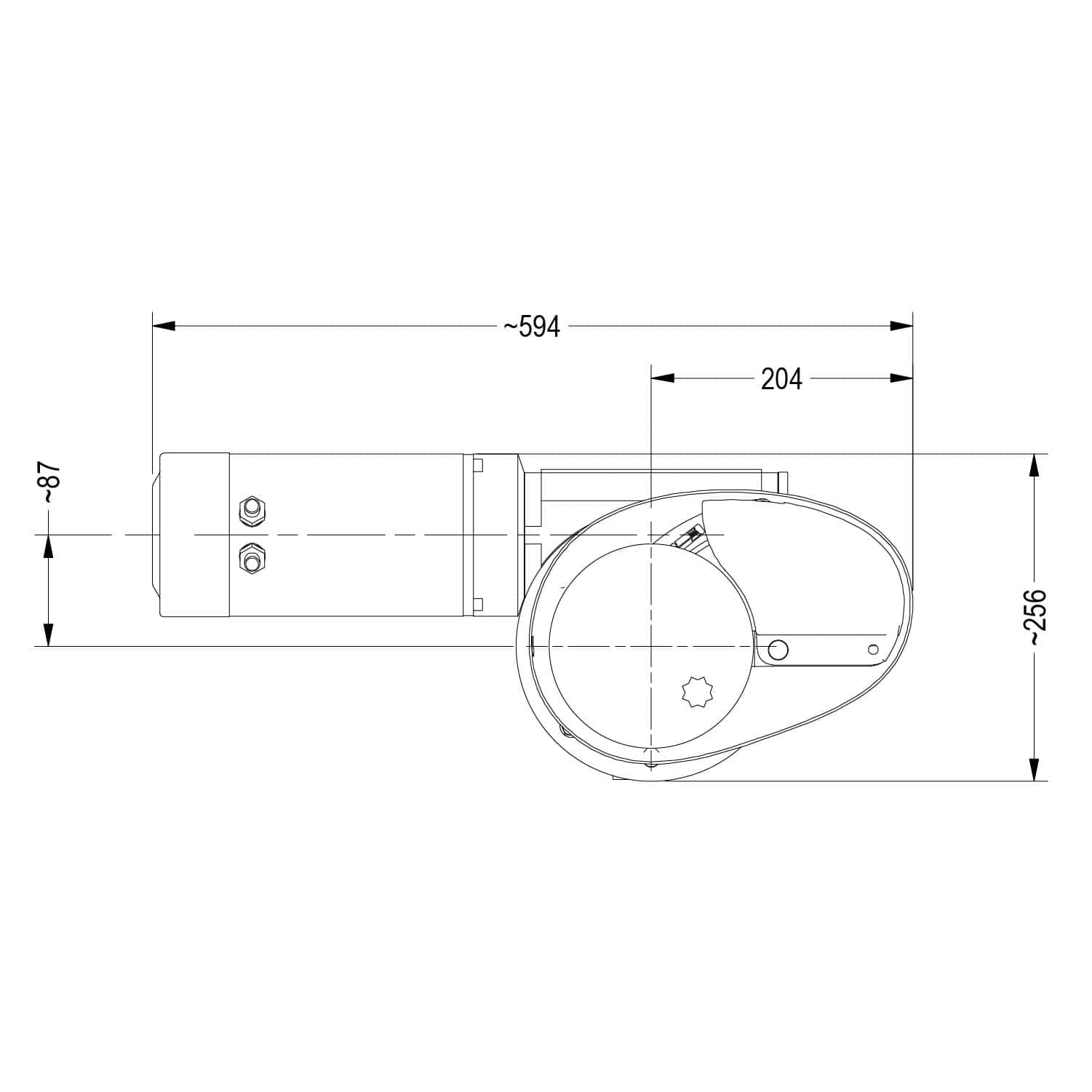

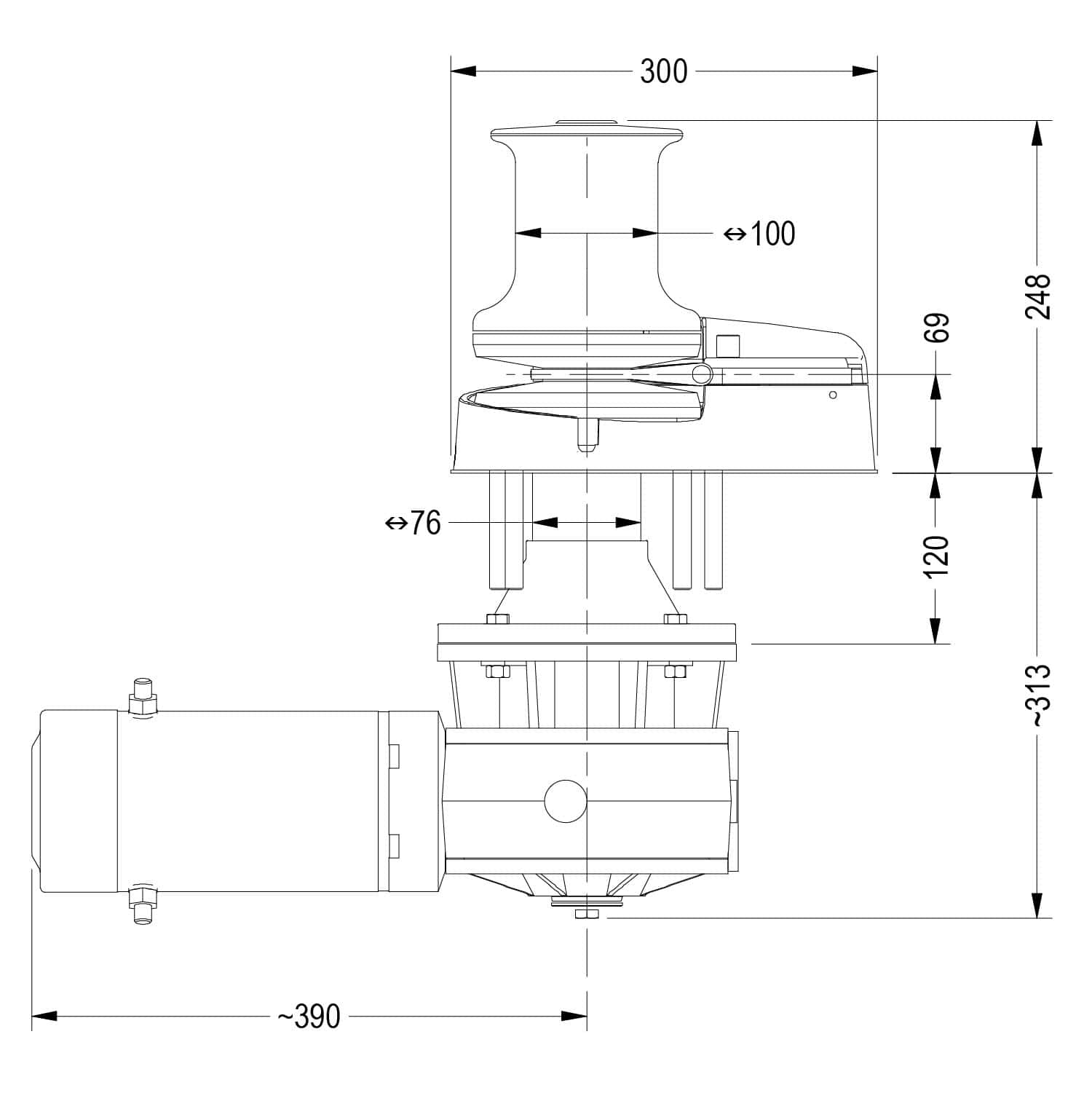

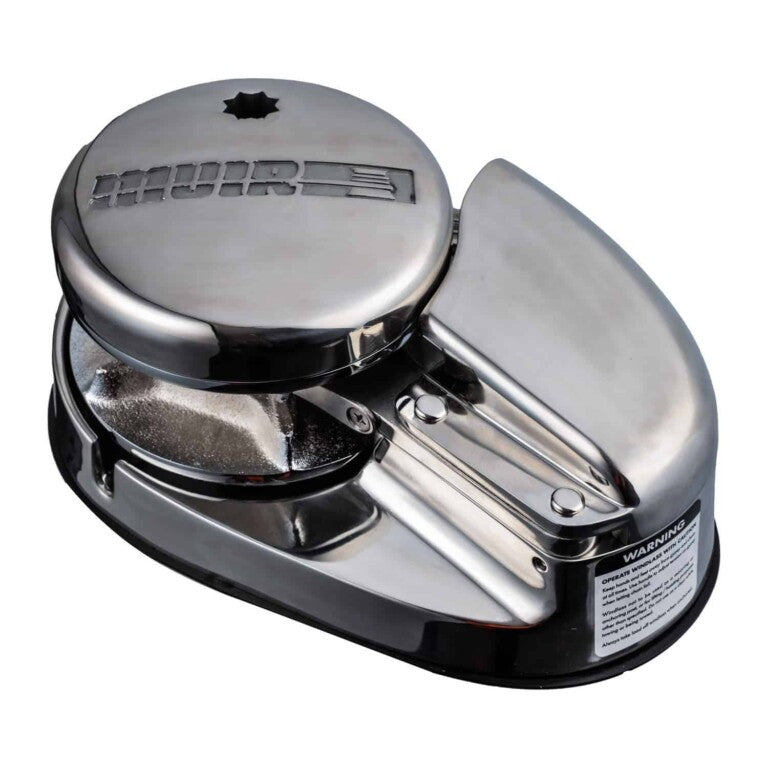

Marine Vertical Windlass - Muir Storm VR4000
$8,699.00
Features
- Polished stainless steel components
- High tensile stainless steel shaft

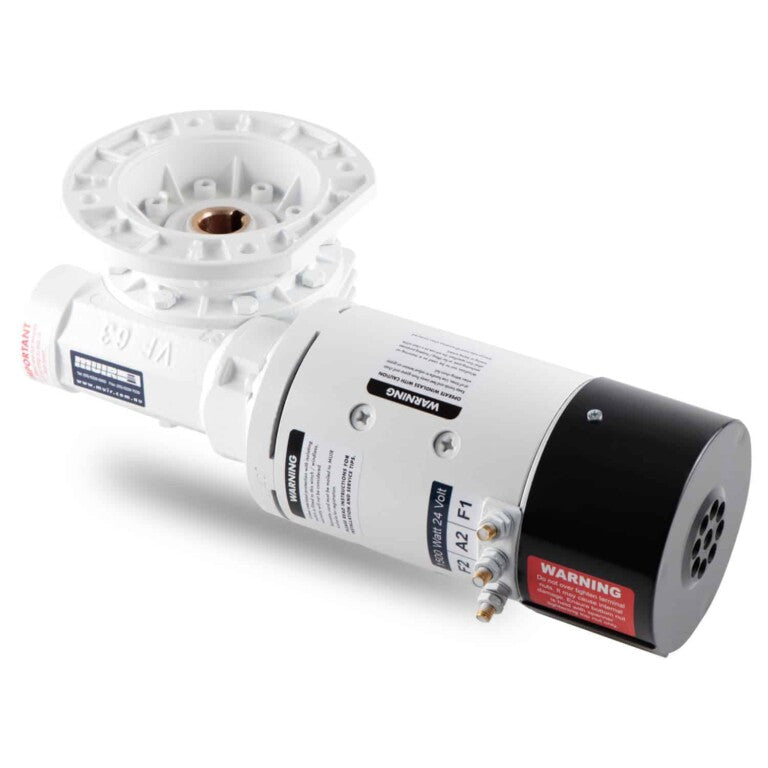

- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self-lubricating bush

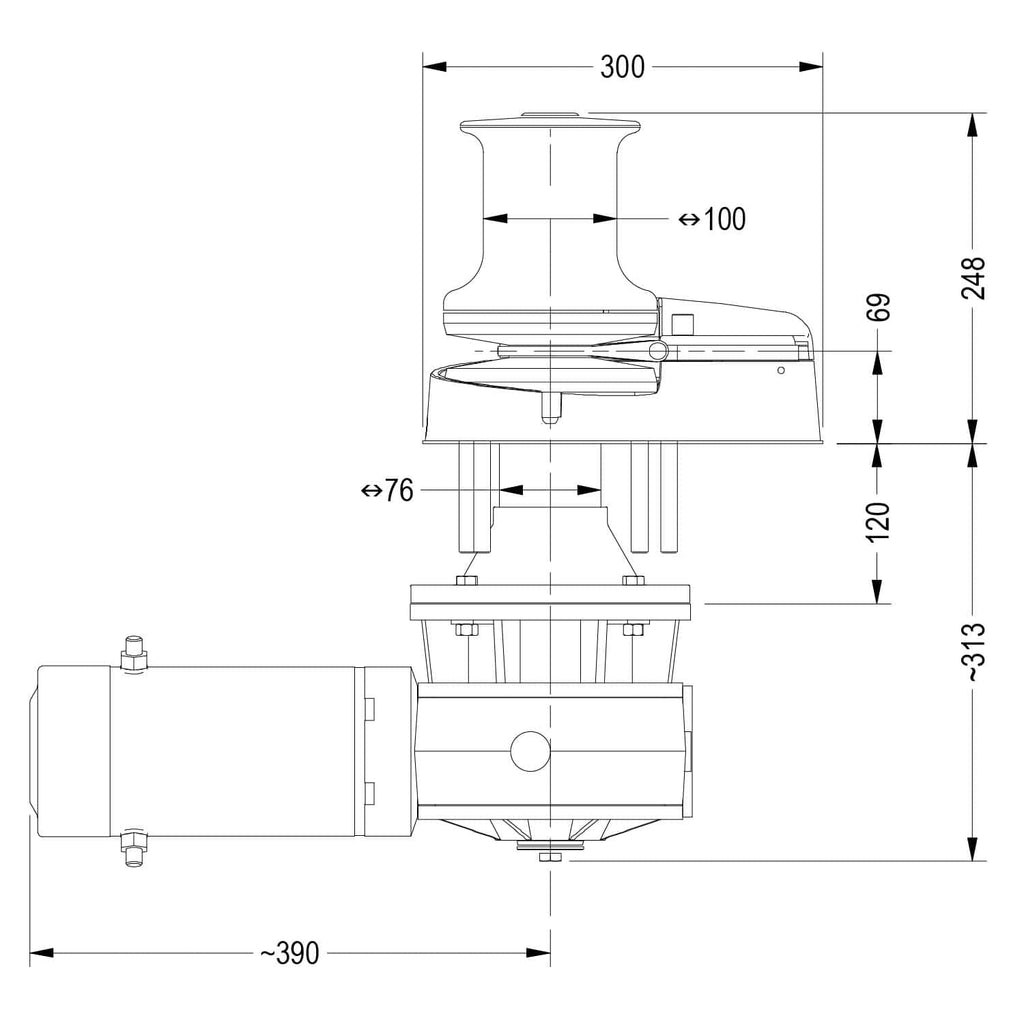

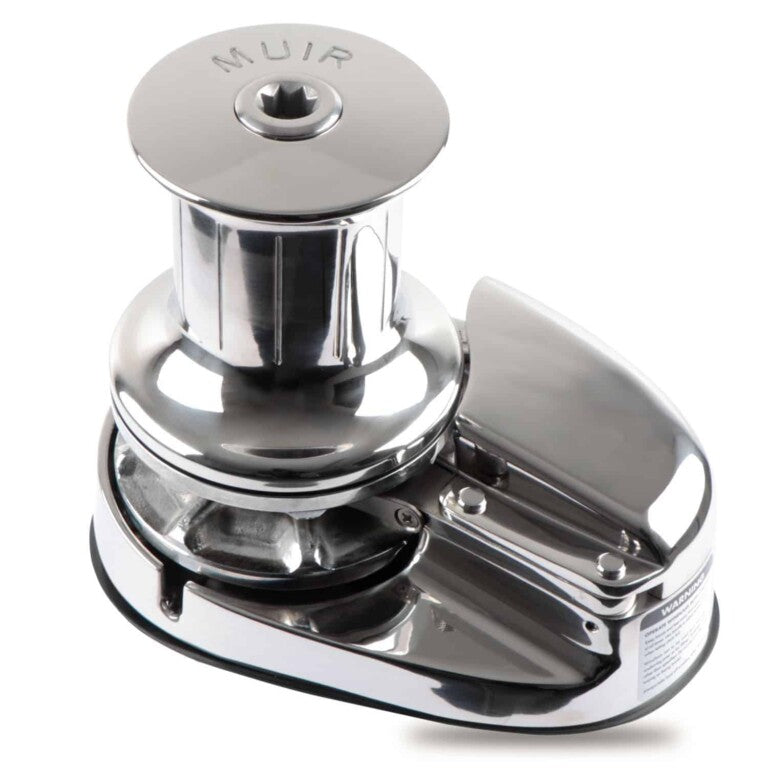

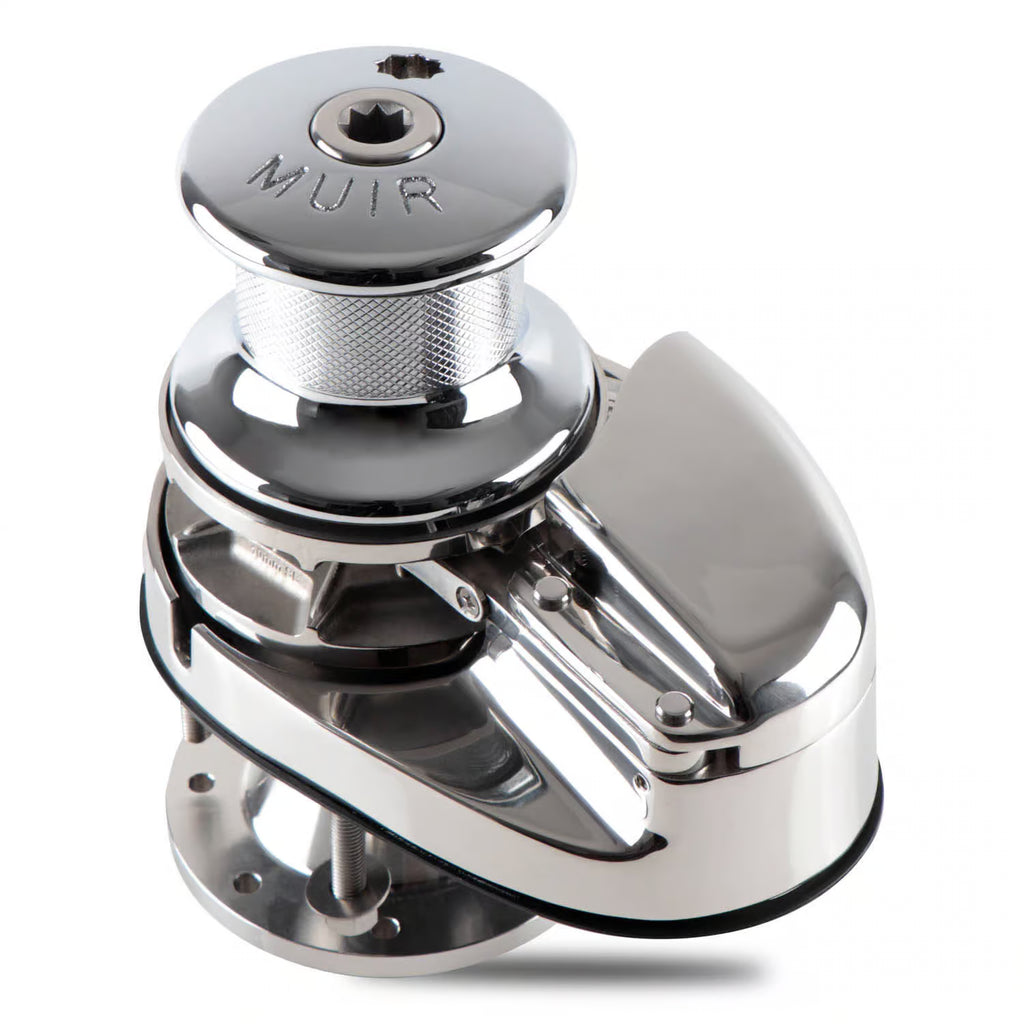

- Capstan models feature a knurled grip

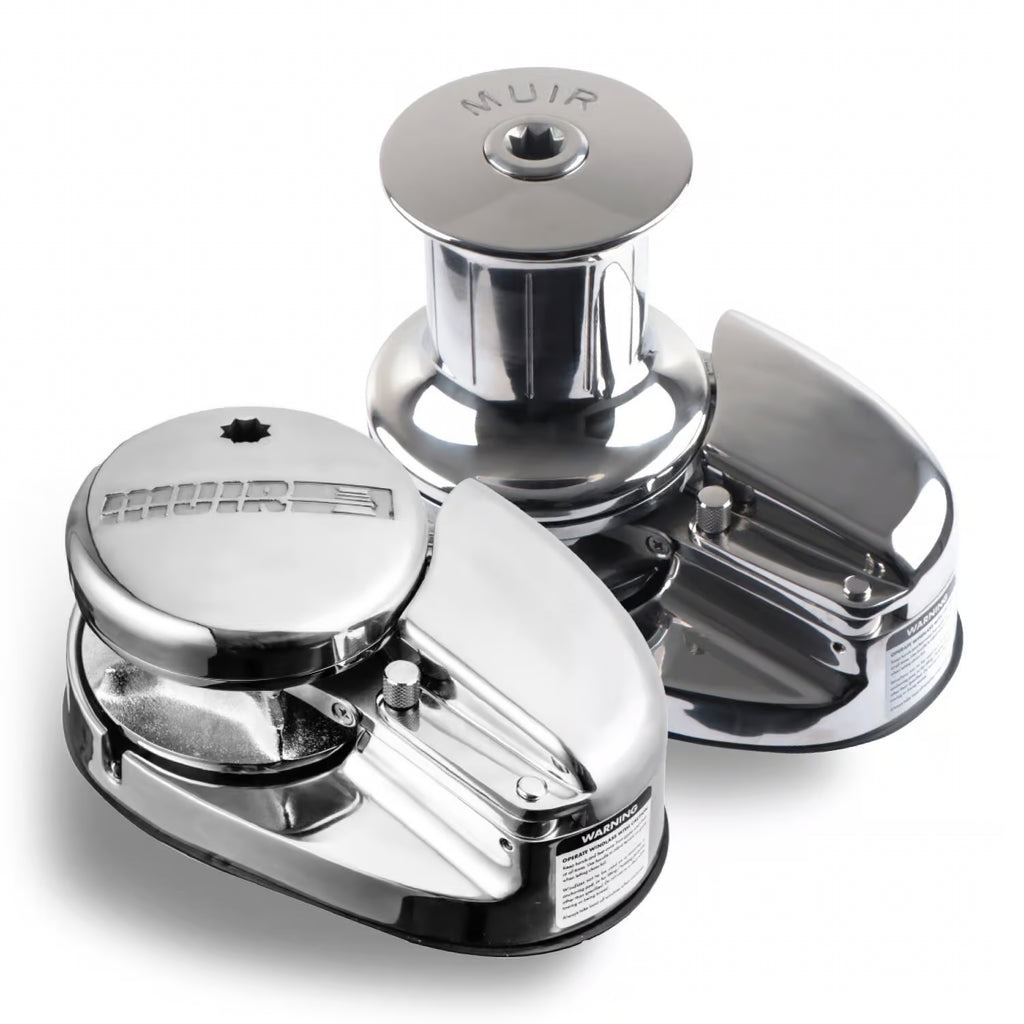

- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 18-25m |
| Power Supply Options | DC 24V, DC 48V |
| Recommended Muir Circuit Breaker |
150A/100A (12/24V) |
| Motor (Watts) | 2200Watts |
| Amps Workload | 110A (12V) |
| Hydraulic Pressure | 199MPa |
| Hydraulic Flow | 22L/min |
| Max Load | 2100Kg |
| Workload | 700Kg |
| Max Line Speed | 17m/min |
| Compatible Chain Sizes | 8 mm (5/16“), 10 mm (3/8”), 13 mm (1/2”), 12 mm (15/32") |
| Compatible Rope/Chain Combo | 8mm (5/16"), 10mm (3/8"), 13mm (3/8") |
| Compatible Rope Sizes |
14mm (9/16″), 16mm (5/8″), 20mm (3/4″) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 54Kg |
| Net Weight Hydraulic | 50Kg |
| Manual Operation | MORS (opt) |
